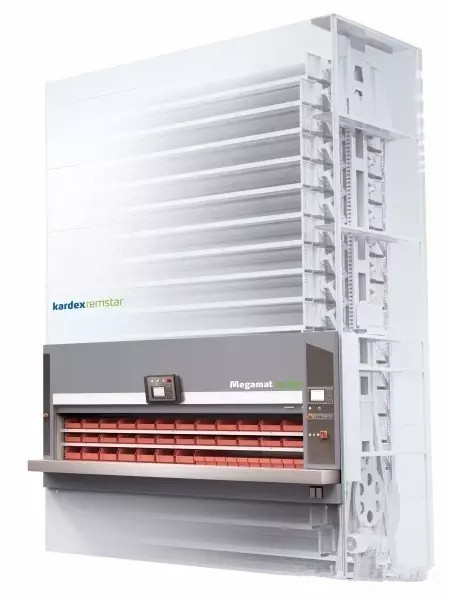

Megamat RS ：高效倉儲 Megamat RS ：Efficient Storage

產品名稱：Megamat RS ：高效倉儲 Megamat RS ：Efficient Storage

所屬類別：·垂直旋轉貨柜

產品人氣：4123

更新日期：2016/6/2 11:35:34

詢價

動自垂直回轉式倉儲系統，為您度身打造高效倉儲與檢索流程

Automated, vertical carousels for efficient,tailor-made storage and retrieval processes

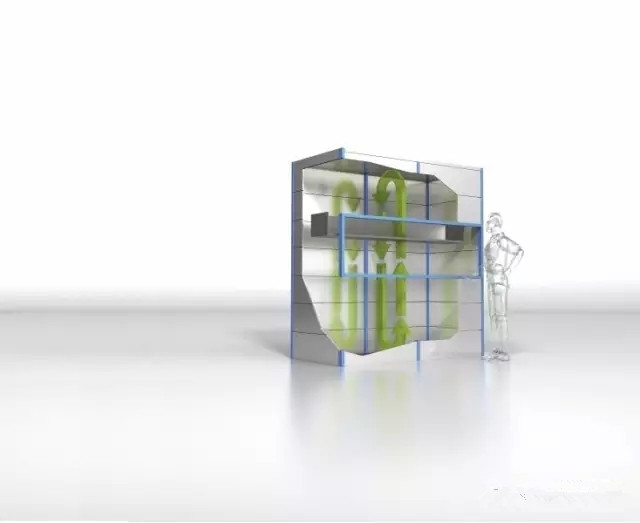

工作原理 Principle

Megamat RS基于鏈斗式升降機的工作原理，是一款自動垂直回轉式倉儲系統，令您在提取儲物時做到快速而且準確。

Megamat RS 可選擇最短路徑將料斗送至取貨口，因而尤為適用于頻繁存取的貨物。Megamat RS 的結構設計在最小的占地面積上為您創造最大的倉儲空間。更加高效的工作流程將讓您的生產力大大提高。Megamat RS 可以作為獨立的垂直回轉式倉儲系統使用，也可以與建筑整合，穿越樓層，開設多個存取口，高度可達10米。任何一款Megamat RS都既可以作為獨立的倉儲解決方案，也可以聯網使用，從最大程度上確保高效、靈活和度身定制的特殊性。購買Kardex Remstar Megamat RS是一項面向未來的安全投資。

Based on the way in which a paternoster works, the Megamat RS is an automated vertical carousel that provides quick and precise access to stored goods.

The Megamat RS is especially suitable for frequently accessed goods, because it conveys the right carrier to the access opening viathe shortest possible path. The design of the Megamat RS offers maximum storage space on a minimal footprint. This facilitates efficiently designed work processes and also significantly raises productivity. The Megamat RS can easily be installed as a free standing vertical carousel or integrated into a building over several floors up to a height of ten metres with more than one access opening. Each Megamat RS can be used as a stand-alone solution or connected to a networked system, there - by ensuring supreme efficiency, flexibility and individuality.The Kardex Remstar Megamat RS is a secure investment in the future.

節能科技 Energy-saving technology

與其回收能源，不如從源頭節約。

通過電機、高效傳動系統以及精細校準的變頻器之間的完美配合，Megamat RS較之以往已經可以達到節能40%，從而顯著降低設備的生命周期成本（TCO）。

Instead of recovering energy, avoid using it in the first place.

Thanks to the perfect interaction between the electric motor, highly efficient transmission and precision- calibrated frequency converter, the Megamat RS now consumes up to 40 per cent less energy, thereby significantly cutting life cycle costs (TCO).

控制系統與軟件

Controlsystem and software

Megamat RS 配備有Logicontrol® 設備控制系統，為您打開一扇進入軟件化倉儲管理世界的大門。

Logicontrol能夠執行倉儲位置管理、貨品及庫存管理等任何一款倉儲管理軟件必備的常規任務，令您無需支付任何附加費用和添置硬件。即使對于小型、復雜性低的倉儲空間或獨立倉儲解決方案，操作員也擁有優化物流效率的發揮空間。借助“目測運行”功能，該系統亦可不依靠倉儲管理系統的控制而運行。如果選擇配備 Kardex Remstar Power Pick® Global軟件或其他倉儲管理系統，則可對倉儲空間、庫存量以及指令揀選性能實現可持續的優化。借助Power Pick Global軟件，揀選訂單將安全、快速、準確地通過倉儲流程，在短時內即可準備發貨。除此之外，高級ERP系統與主機系統也可以隨時通過標準接口彼此連接，簡單易行。由于其存取耗時極短，Megamat RS尤其適合在“目測運行”功能下揀選小件貨品。條形碼解決方案、位置顯示器以及指示燈揀選技術，均可通過標準接口加以整合。

The Megamat RS is equipped with the Logicontrol® machine control system, which also provides a simple way of entering the world of software-supported warehouse management.

That’s because managing storage locations,articles and stock – the classic tasks of any warehouse management software –is possible with Logicontrol without the need for additional expense and hardware. As a result, even operators of small, less complex storage spaces or stand-alone solutions now have the opportunity to optimise their material flow.With the“drive and view” feature, the system can also run without warehouse management. By optionally using Kardex Remstar Power Pick® Global software or other warehouse managementsystems, it is possible to permanently optimise storage spaces, stock and orderpicking performance. The orders are guided safely, quickly and precisely through the warehouse with the help of Power Pick Global and are promptly made available for shipping.Furthermore,higher-level ERP and host systems can easily be connected at any time via standard interfaces. Thanks to its extremely fast access times, the Megamat RS is particularly suited to the“driveand view” feature and picking small parts. Bar code solutions, position indicators and pick-to-light technology can also be integrated via standard interfaces.

安全性 Safety

Megamat RS采用多級安全設計，為人員、設備和儲物提供了最為完善的保護。

在倉儲系統的存取口處安裝有標準保護裝置，例如安全光柵，為避免操作人員發生工傷事故提供充分保障?？杉渔i的平穩滑動門能夠確保貨品在未經許可的情況下不能存取，避免發生盜竊事故。為防止整個系統或特定區域出現未經許可的存取行為，另可設置個人密碼或者安裝用于識別雇員身份的RFID芯片。

With its multi level safety concept, the Megamat RS provides the best-possible protection for man, machine and stored goods.

Thanks to the protection equipment fitted as standard in the access opening of the storage system, such as the safety light curtain, the operator is optimally protected against accidents in the workplace. Stored goods can be secured against unauthorised access and theft with the help of the lockable smooth-runningsliding door. It is also possible to protect the entire unit or certain areas against unauthorised access by issuing individual passwords or using RFID chipsfor identifying employees.

為保證完善的安全性，Kardex Remstar為 Megamat RS 系統配備了以下強大功能：

To ensure maximum safety, Kardex Remstar has equipped the new Megamat RS with four impressive features:

–應急手搖柄 Emergency hand crank

即便遇到停電情況，使用應急手搖柄亦可保證隨時提取所需貨品。

Even in the event of a power outage, the emergency hand crank provides access to stored products at all times.

– 自動緊鏈裝置 Automatic chain tensioner

新式緊鏈裝置大大降低了起重鏈條的磨損幾率，使倉儲系統更加可靠耐用。

The new chain tensioner significantly reduces the susceptibility of the load chain to wear and tear. The result is a reliable and long-lasting storage system.

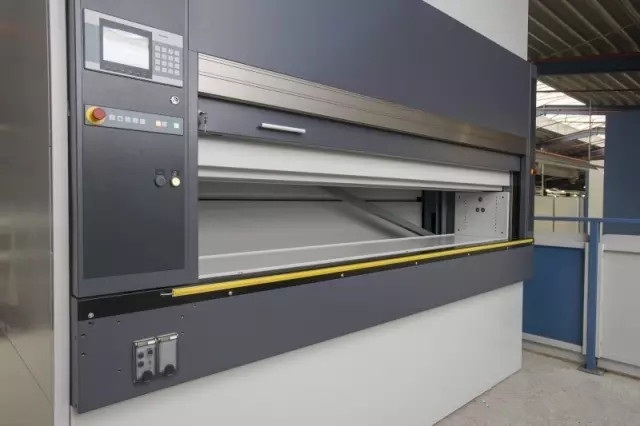

– 平穩的滑動門 Smooth-running sliding door

可加鎖的滑動門運行極為平穩。既可自動開關，亦可手動操作，甚至可以單手開啟，確保了使用的簡便性以及工作流程的連貫性。

The lockable sliding door moves especially smoothly.It can be operated automatically or manually and can even be opened with one hand, thereby guaranteeing ease of use and ensuring that employees can continue working uninterrupted.

– Clip系統 Clip system

創新性的 Kardex Remstar Clip系統令貨柜護板安裝簡便快速，而且極為安全。增強的系統穩定性為倉儲貨品和現場工作人員提供了最大程度的安全保障。

The innovative Kardex Remstar clip system allows for simple, fast and extremely safe assembly of the panels. The increased system stability guarantees maximum protection both for stored goods and on-site employees.

KardexRemstar為您度身打造個性化解決方案。

Kardex Remstar offers you an individual solution tailored to your needs.

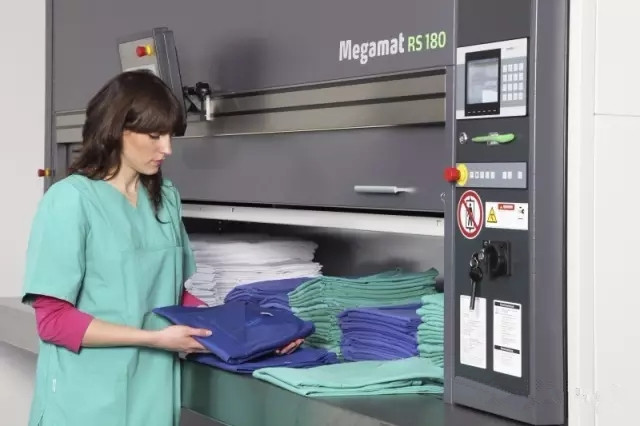

Megamat RS 180

高效存儲、快速提取輕型貨品

Efficient storage and fast retrieval of lightweight loads

Megamat RS 180 最為適用于存取放置于儲物箱內的紡織品和小件貨品 – 適用領域包括酒店、醫藥衛生、汽車制造、機械制造以及電子工業等。

The Megamat RS 180 is mostly suitable for the orderly storage and picking of textiles or small parts in containers – for instance in the hotel and medical sectors, in vehicle manufacturing and mechanical engineering, and in the electronics industry.

Megamat RS 350

存取中型貨品的理想選擇

Ideal for medium-sized loads

Megamat RS 350是存取設備組件、工具以及零備件的理想選擇。它不僅應用領域廣泛，而且單個料斗承重可達350千克。

The Megamat RS 350 is the perfect solution for storing and retrieving components, tools and spare parts. Among the wide range of possible applications, each carrier can be loaded with up to 350 kg.

Megamat RS 650

單個料斗承重可達650千克

For heavy loads of up to 650 kg per carrier

Megamat RS 650可用于各種不同領域。例如，它可以通過多種方式與生產流程整合 –既可臨時存放半成品，亦可在晾干過程中作為存儲緩沖區。

The Megamat RS 650 can be used in a variety of different areas. For instance, it can be integrated in the production process in a number of ways – either as an interim storage solution for semi-finished products oras a storage buffer during drying phases.

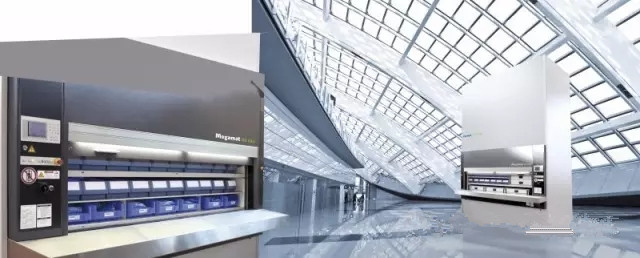

KardexRemstar Megamat RS:功能與設計之間的多樣性

KardexRemstar Megamat RS:Variety between function and design

無論是小型、中型還是大型企業，無論是工業還是商業領域，Megamat RS 系列的設備幾乎適用于各種需求，集一流的性能、最佳的使用便利性和外形的美觀性于一身。

Whether for smaller, medium-sized or large companies, industry or trade, the units in the Megamat RS series can be adapted for virtually any application and combine supreme performance, maximum operating comfort and attractive design.
